Special Price - F02015-A 4Sets/lot A2212 1000KV Brushless Outrunner Motor + 30A Speed Controller ESC RC Aircraft Quadcopter UFO Excellent
Best Price - F02015-A 4Sets/lot A2212 1000KV Brushless Outrunner Motor + 30A Speed Controller ESC RC Aircraft Quadcopter UFO Special Price
Use:
Vehicles & Remote Control Toys
For Vehicle Type:
Helicopters
Four-wheel Drive Attributes:
Assemblage
RC Parts & Accs:
Landing Gear
Remote Control Peripherals/Devices:
ESC
Upgrade Parts/Accessories:
Frame
Material:
Composite Material
Model Number:
1000KV Motor

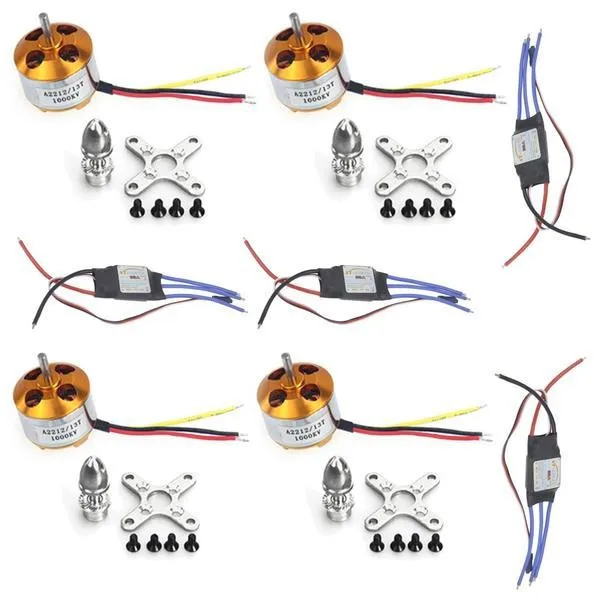

A2212 1000KV Brushless Outrunner Motor + 30A Speed Controller ESC
Include:
A2212 1000KV*4
30A ESC *4
A2212 1000KV MOTOR:
| Model | KV | Shaft(m)m | Weight | Min Current | Max Current | Max Efficiency | Battery | Motor Dimensions | Class |
| A 2212 | 1000 rpm/V | 3.17 | 47g | 4A | 10A | 80% | 2-3 Li-Poly | 27.5 x 30mm | 4/6 axis copter |
- KV: 1000
- Max Efficiency: 80%
- Max Efficiency Current: 4-10A (>75%)
- Current Capacity: 12A/60s
- No Load Current 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly
- Motor Dimensions: ?27.5 x 30mm
- Shaft Diameter: ?3.17mm
- Weight: 47g
DT-30A Brushless ESC:
ATTENTION:
- This ESC do not have the English instruction.
- Before producing, the manufacturer have set up the program, the ESC do not need additional program.
1.1 Output: Continuous 30A, Burst 35A up to 10 Secs. 1.2Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery. 1.3BEC:2A / 5V (Linear mode). 1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. (BLM: BrushLess Motor) 1.5 Size: 45mm (L) * 24mm (W) * 11mm (H). 1.6 Weight:22g.
2Features
2.1 Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected. 2.2 Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters. 2.3 Programmable Items: Brake Setting: brake enabled / brake disabled. Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd). Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power. Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high. Start Mode: normal / soft / very soft. Timing: low / medium / high. Reset: resetall the programmable items totheir default settings. 2.4 Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.
3Advantages 3.1Military standard capacitorof extreme low resistance increases the ability of prevention of unwanted RF noise during flying. 3.2Extreme low resistancePCB is helpful for getting a super current endurance capability. 3.3 Microprocessor uses separate voltage regulator IC, with good anti-jamming capability.
Unit Type:
Set
Package Weight:
0.12kg (0.26lb.)
Package Size:
10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
